Small workshop builds Link to section: Small workshop builds

These are some of my smaller workshop builds: an arcade-style controller, a soldering fan, and printed parts for other projects.

Most combine a custom printed part with buttons, a motor, or another component that needs a housing or mount. CAD (computer-aided design) means using software to work out a part’s shape before printing it.

Arcade-style controller Link to section: Arcade-style controller

I built the controller with a black printed enclosure, large buttons, and gray printed caps. The enclosure holds the controls together in an arcade-style layout.

Soldering fan Link to section: Soldering fan

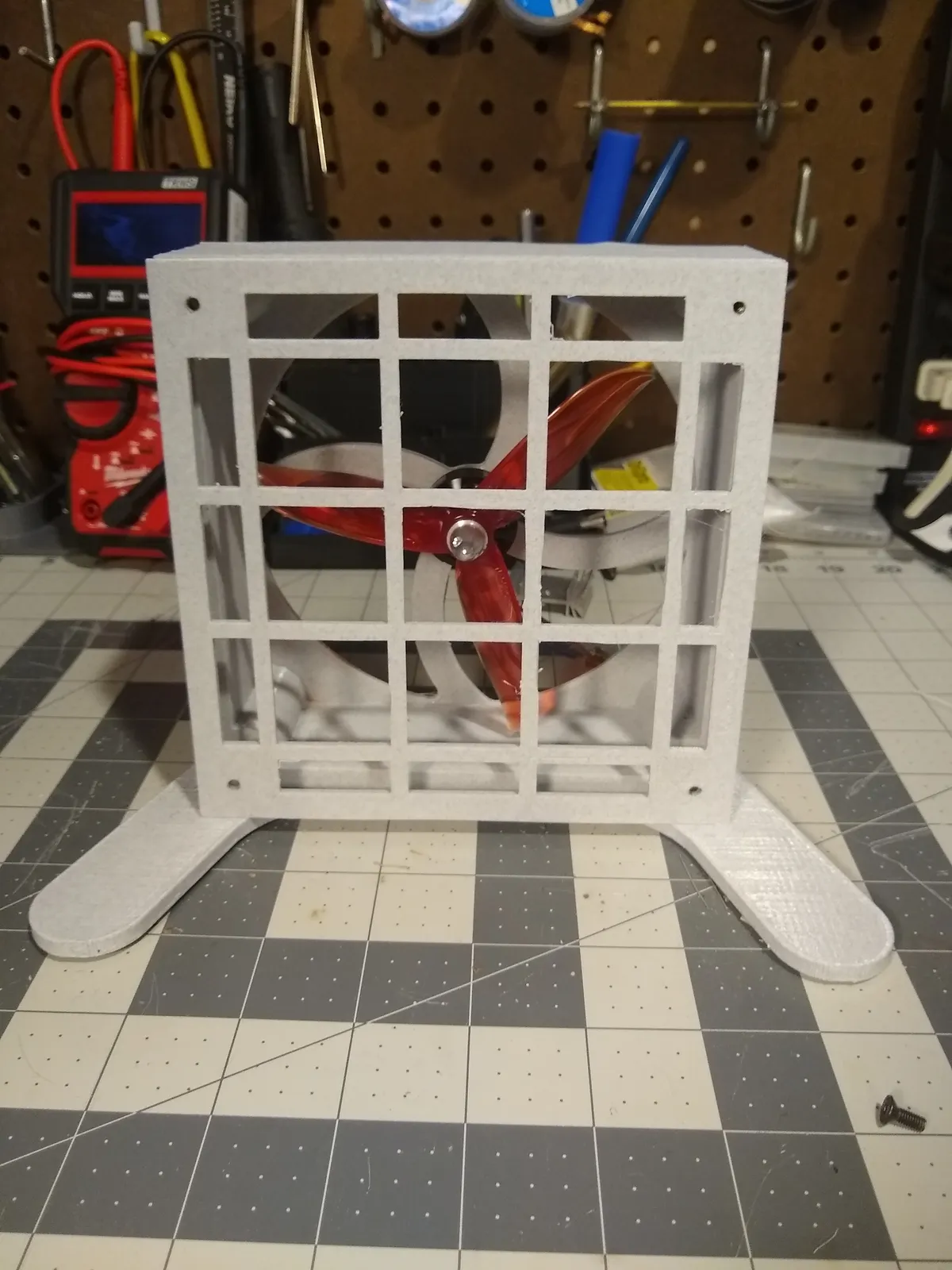

The soldering fan has a printed casing, front grille, motor mount, and wide feet. The mount holds the fan inside the body, while the feet support it at an angle on the workbench.

Shop tools and fixtures Link to section: Shop tools and fixtures

I printed and assembled a small disc sander with an orange housing for my workshop. I also printed pegboard hooks and spool holders to hold electrical tape and solder. For my desk, I printed and assembled a hinged monitor bracket and a speaker front plate that holds two drivers.

Printed violin experiment Link to section: Printed violin experiment

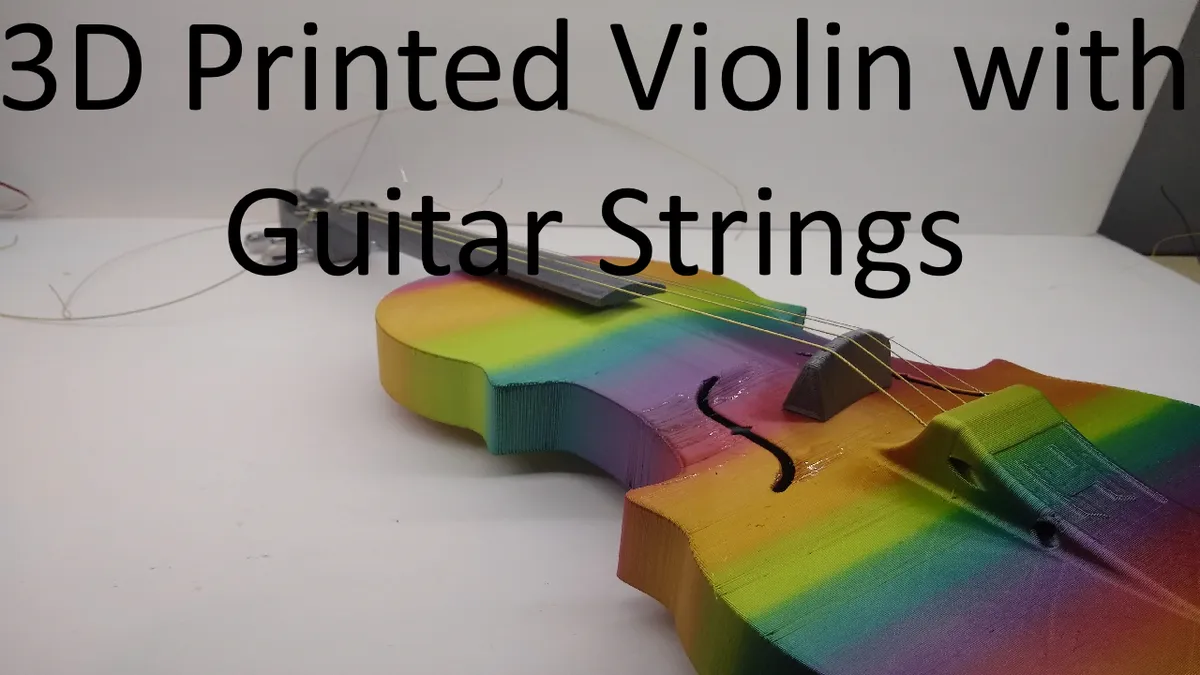

I also printed and assembled a rainbow violin using Hova Labs’ Hovalin design. Its project page has the CR-10 (3D printer) build details, my first sound test with guitar strings, and a clip of early bow practice.

Other printed parts Link to section: Other printed parts

Other experiments include:

  • A printed mallet.
  • Bike-light mounts.
  • Organizers.
  • Parts for RC (radio-controlled) cars and robot builds.

The Catan organizers, dice boxes and counters, and LED sculptures each have a page with more photos and build details.

FAQ

What workshop builds are included?

The page includes an arcade-style controller, soldering fan, small disc sander, pegboard hooks and spool holders, a hinged monitor bracket, and a speaker front plate.

How was the arcade-style controller constructed?

It uses a black printed enclosure, large buttons, and gray printed caps arranged in an arcade-style layout.

Which parts of the soldering fan are printed?

The fan has a printed casing, front grille, motor mount, and wide feet. The mount holds the fan inside the body, and the feet support it at an angle.
